MICRO STEEL Floodlight

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
4653,00012°
4854,00012°
4353,00033°
4504,00033°
4403,00044°
4604,00044°
Download all Photometry and BIM Data

Key Features

The projector has a shape which is soft and sinuous, slender in shape and with marked dimensional changes between body and diffuser. Its refined design creates a pleasant dynamism. It is also available a specific version for underwater use, equipped by watertight recessed box. MICRO STEEL, is a recessed fitting from formal perfection, with a geometrical design and minimum diameter and projections. Even MICRO STEEL can be used in immersion.

Applications

Distribution

12°
33°
44°

Specification

Die-cast body made of aluminium alloy with very low copper content. Closing flange in AISI 316 stainless steel. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray. IP68 Degree of protection with Full Dry system which avoids condensing inside the product. Outer casing Installation cast in concrete with a 20-30 cm gravel drainage bed. Only an IP68 connection to the power supply can guarantee the same protection to the appliance. Outer casing and connector to be ordered separately.

 Copy specification to clipboard

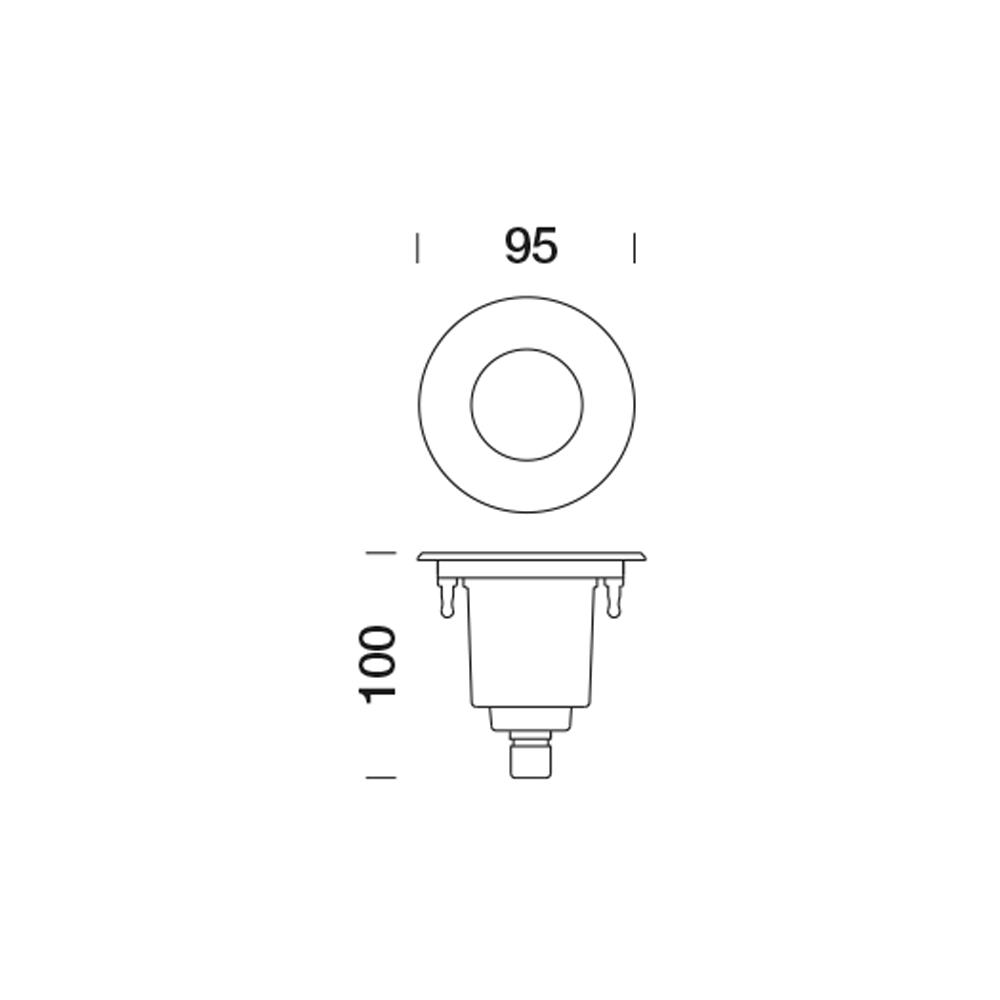

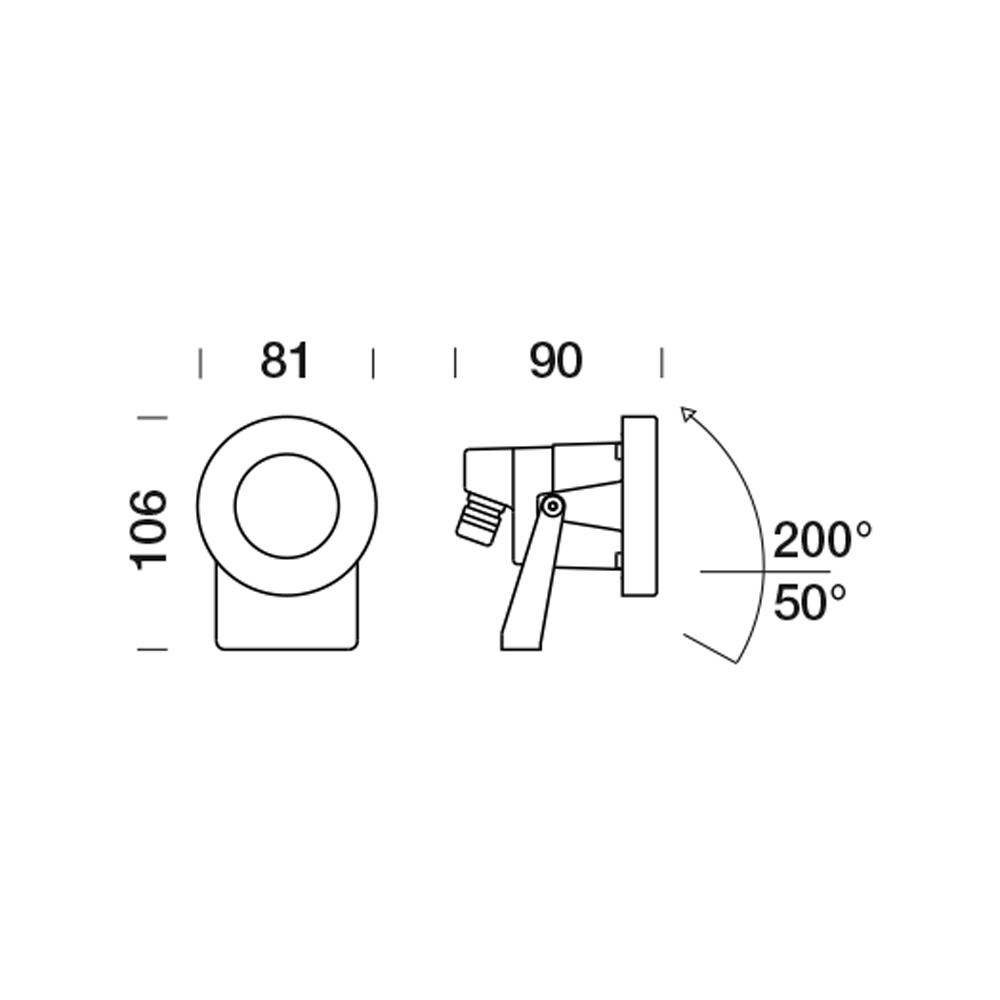

Dimensions
