Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
5403,0001 Opening
5604,0001 Opening
5403,0001 Opening
5604,0001 Opening
6003,0002 Openings
6254,0002 Openings
6003,0002 Openings
6254,0002 Openings

Key Features

A set of rectangles composes the wicket, with glass diffuser on the same plane of the body completely flush. Available in two heights and with mono and bi-directional emission, it is suitable for walkways and paths of parks and gardens.

Applications

Distribution

1 Opening
2 Openings

Specification

Extruded aluminium alloy body. Fully concealed floor fixing flange. Gore valve to prevent condensing. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray. Pre-treatment with atmospheric pressure plasma is carried out on the surface before gluing of the diffuser on  products.

Copy specification to clipboard

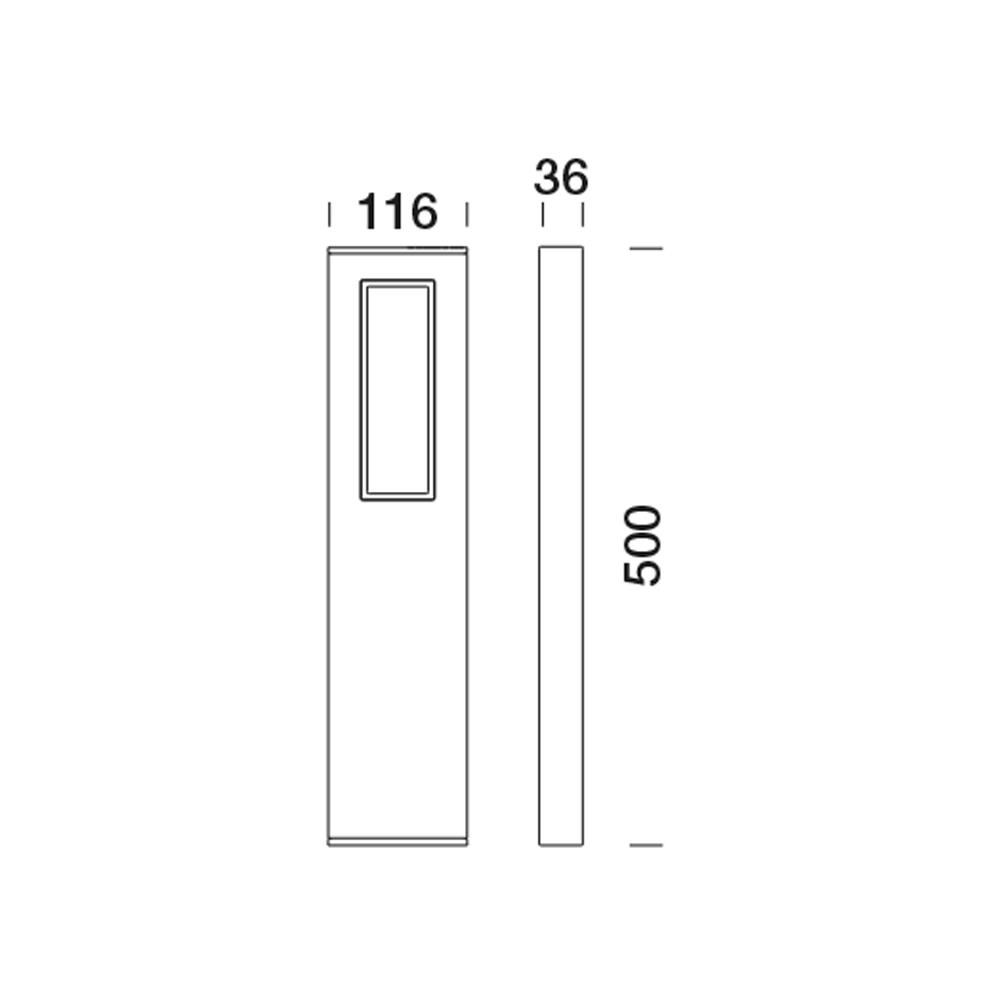

Dimensions

Feature
