Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
2,0703,000Asymmetrical
2,8803,000Asymmetrical
3,8203,000Asymmetrical
3,8203,000Asymmetrical
2,1504,000Asymmetrical
2,9954,000Asymmetrical
3,9704,000Asymmetrical
3,9704,000Asymmetrical

Key Features

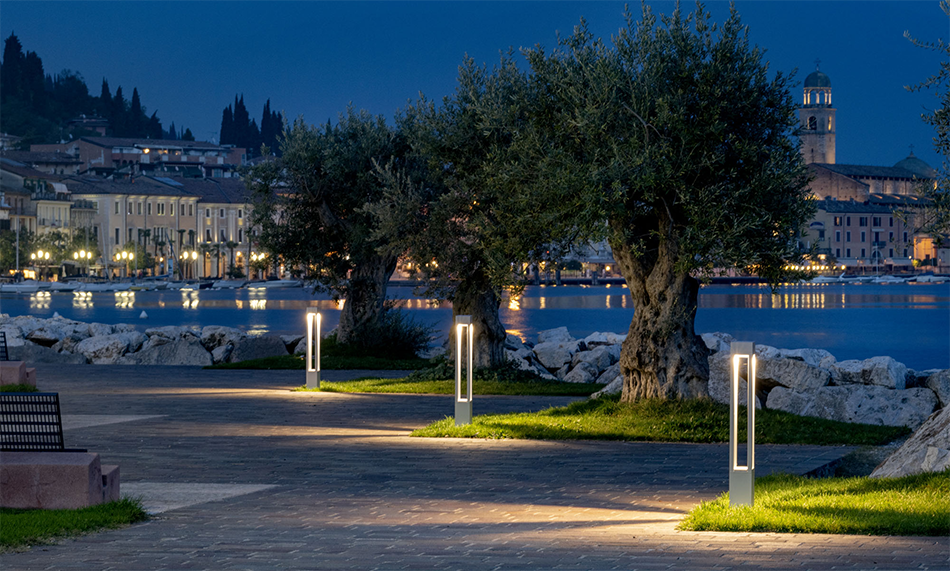

T4 is a small architectural lighting structure: the body with a square section is composed of two separate volumes by two uprights supporting the light source. At power-on, this ephemeral structure disappears from sight, transforming into two beams of geometrical light which creates a suggestive alternation of light and shadow on the floor. T4 is an efficient tool for the lighting of open spaces, pedestrian areas and urban zones.

Applications

Distribution

Asymmetrical

Specification

Body made of extruded, corrosion resistant, aluminium alloy. Head made in corrosion resistant and painted die-cast aluminium. Protection with anodizing treatment, epoxy powder base coating and polyester painting. A4 stainless steel screws.

Copy specification to clipboard

Dimensions


Feature

Lighting Design

Holophane offer a comprehensive and professional lighting design service. Our experienced and qualified lighting designers are on hand to provide full project support ranging from simple calculation plots to full complex lighting designs.

Feature

Product Matching


Holophane’s history lies in it being the first company to give practical application to the principles of the prism as the ultimate means of light control, harnessing and redirecting the output of light source by prismatic means to provide the best in cost effective, efficient lighting.

Feature

More light, less Investment


We believe that our products are better, more cost-effective and longer-lasting. And we'd like you to put that to the test.
