Haloprism™

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)Efficacy (llm/W)IESBIM
17,0274,000Broad Distribution110153
25,1044,000Broad Distribution170153
32,8904,000Broad Distribution210153
29,5804,000Broad Distribution213.2153
41,6804,000Broad Distribution298.7153
52,3744,000Broad Distribution383153
57,2334,000Broad Distribution426153
63,2104,000Broad Distribution475153
17,2764,000Extensive Distribution110153
24,4104,000Extensive Distribution170153
33,3714,000Extensive Distribution210153
29,5504,000Extensive Distribution213.2153
41,3504,000Extensive Distribution298.7153
51,9604,000Extensive Distribution383153
56,7804,000Extensive Distribution426153
62,7104,000Extensive Distribution475153
16,5734,000Focused Distribution110153
24,4234,000Focused Distribution170153
31,9824,000Focused Distribution210153
28,8304,000Focused Distribution213.2153
12
Download all Photometry and BIM Data

Key Features

Haloprism fuses the latest in LED technology with the distinguished dynamics of Holophane's durable prismatic glass optics. Combined to deliver the highest LED lumen package, longest system life and lowest maintenance high bay luminaire solution.

  • Finned luminaire design with inner and outer perimeter chamber vents, utalises conduction and convection to ensure heat is managed away from the LEDs to maintain a long system life.
  • Ventilated driver chamber optimises cooling by natural convection of air over heat sensitive electronic components and ensures dust build-up is minimised.
  • Incorporates PrismaLED technology which delivers a wholly luminous effect that accurately controls the output of the LEDs and reduces glare.

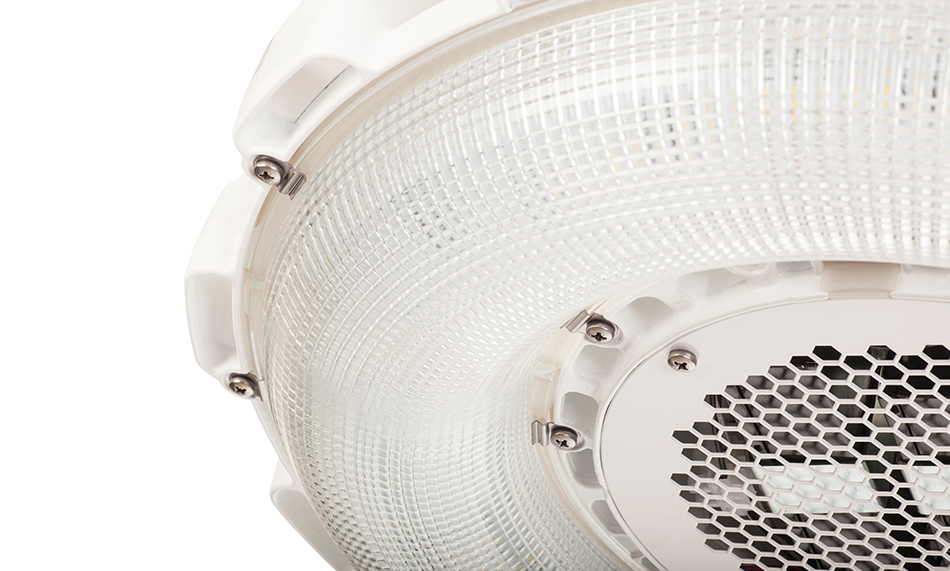

  • Glass refractor technology with rounded ‘light blending’ prisms on the inner surface and sharper ‘light controlling’ prisms on the outer surface help to ‘blend and shape’ the light output.
  • Five distributions catering for a wide range of high mounting height and spacing requirements.
  • Low electrostatic ‘semi-torus’ glass optics and the vertical ventilation slots of the luminaire heat-sink work together to create a self-cleaning optical system.
  • Glass optics proven to minimise dust and dirt accumulation over time, dramatically improve the lumen maintenance over life.
  • High quality, efficient LEDs used in conjunction with the latest in LED drivers ensures that the best lumen per watts and a long system life are achieved.
  • DALI (up to 3 x DALI addresses) and 1-10V analogue controls options available.
  • Fully integrable into Holophane’s HOLOS system.
  • Local control via standalone 1-10V infrared presence detector (HEL.PIR) - accessory.
  • Plug and play controls connection.

Applications

Distribution

Broad Distribution
Extensive Distribution
Focused Distribution
Intensive Distribution
Narrow Distribution

Specification

The luminaire shall utilise PrismaLED optics consisting of twin-active, prismatic glass lenses manufactured from soda-lime glass (SiO274Ca011Na2O13) mounted with specially designed stainless steel deformable clips to hold the prismatic glass in place. The fully ventilated finned luminaire chassis is manufactured from LM20 aluminium (AlSi12Cu) to maximise heat transfer.

The luminaire, with inner & outer perimeter vents and ventilated electronic driver chamber, utilises all three heat transfer mechanisms of conduction, convection and radiation to ensure that the LEDs mounted to the aluminium backed PCB and electronic drivers are thermally managed.

The prismatic glass lenses are sealed within the main luminaire chassis with a die cut gasket that has internal wire pass holes to ensure IP65 is maintained.

 Copy specification to clipboard

Dimensions

Note: The specifications of the Holophane luminaire represents typical values. All descriptions, illustrations, ,drawings and specifications in the Holophane catalogue and website represent only general particulars of the goods to which they apply and shall not form part of any contract. The company reserves the right to change specifications at its discretion without prior notification or public announcement.
