Holobay

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)IESBIM
12,1094,000Aisle74
11,5424,000Focus70
12,3074,000Medium74
11,7794,000Medium74
11,6204,000Narrow74
12,8554,000Wide74
12,2094,000Wide74
14,8714,000Aisle86
14,6424,000Focus91
15,6574,000Medium86
14,9864,000Medium86
14,2934,000Narrow86
16,0524,000Wide86
15,2454,000Wide86
18,0634,000Aisle107
17,0814,000Focus108
18,6624,000Medium107
17,8614,000Medium107
17,2794,000Narrow107
18,9894,000Wide107
1234567
Download all Photometry and BIM Data

Key Features

HOLOBAY fuses the latest electronic and control technology with the distinguished dynamics of Holophane’s optical control. This combination delivers exceptional illumination, volumetric light, visual comfort, and efficiency.

With the patented hinged driver housing, HOLOBAY delivers a solution that ensures ease of installation and maintenance. The ultra-sleek compact size and a full suite of control options ensure HOLOBAY delivers complete lighting solutions for interior applications.


Distribution


Two sizes designed to deliver the optimum lighting solution for all  industrial highbay applications.

  • PrismaLED technology provides a wholly luminous effect, accurately controlling LED output and reducing glare.
  • A unique optical design, available in both glass and silicone, is highly transmissive to deliver a volumetric lighting performance that ensures longevity and low maintenance.

  • Vertical ventilation promoted air flow around glass optics to minimize dust from settling onto optics, minimizing dirt accumulation.
  • The glass lens has a low electrostatic charge, reducing dust and dirt buildup and improving dirt depreciation over time. This allows for higher Maintenance Factors (MF) in design calculations.

  • Suitable for ambient temperatures of up to 70°C, enabling the luminaire to be used in various environments.
  • Suitable for use in applications which are subject to corrosion (Class C4)
  • Hook mounted as standard with optional stirrup bracket and suspension mounting options. Crane, Inverted, Pendant and Wall mounting options are available on request.

HOLOBAY has a patented hinged housing that provides easy access to the gear compartment. This greatly reduces the time required for installation and maintenance, making accessing and replacing components such as drivers and emergency batteries more straightforward.

  • Integrated control and emergency options.
  • Compatible with HOLOSAir for optimised control.

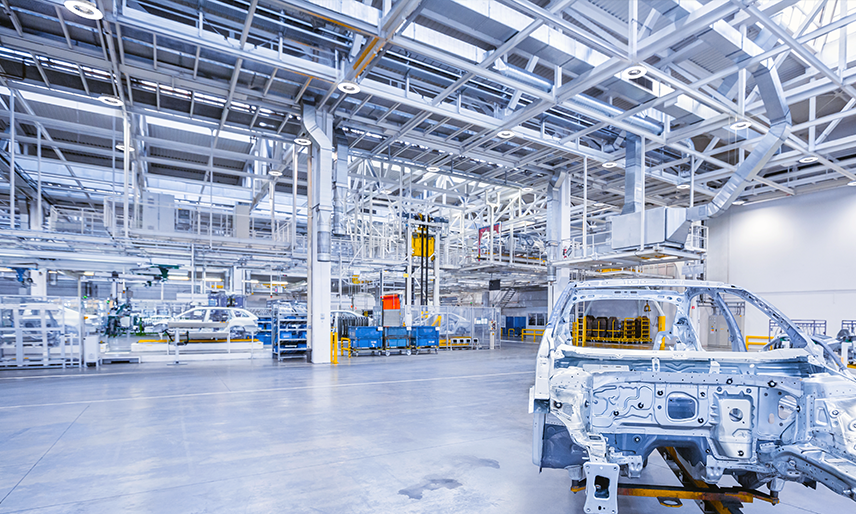

Applications

Distribution

Specification

Precisely engineered die-cast aluminium and borosilicate prismatic glass (silicone also available) provide exceptional illumination, volumetric light, visual comfort, and efficiency.

This is a two-size solution with a thermally separate but attached gear housing construction, which ensures the luminaire delivers a range of highly efficient lumen packages with a thermally balanced long system life.

 Copy specification to clipboard

Dimensions

Note: The specifications of the Holophane luminaire represent typical values. All descriptions, illustrations, drawings, and specifications in the Holophane catalogue and website represent only general particulars of the goods to which they apply and shall not form part of any contract. The company reserves the right to change specifications without prior notification or public announcement.
