Pebble

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)IESBIM
2,9203,000Asymmetric20
2,9143,000Forward Throw20
2,9063,000Forward Throw Extra20
2,9073,000Long & Narrow20
2,9143,000Symmetric20
3,8723,000Asymmetric26
3,8663,000Forward Throw26
3,8523,000Forward Throw Extra26
3,8603,000Long & Narrow26
3,8663,000Symmetric26
4,8243,000Asymmetric32
4,8183,000Forward Throw32
4,7993,000Forward Throw Extra32
4,8123,000Long & Narrow32
4,8183,000Symmetric32
5,7773,000Asymmetric38
5,7703,000Forward Throw38
5,7473,000Forward Throw Extra38
5,7633,000Long & Narrow38
5,7703,000Symmetric38
123456789
Download all Photometry and BIM Data

Key Features

Pebble has been developed to bring high-quality, humancentred lighting to public realm environments. Its Comfort Optic combines prismatic control with a soft illuminated surface to deliver balanced light with reduced glare and improved visibility. Rotatable optics, replaceable components and recyclable materials support longterm value and align with Holophane’s commitment to sustainability. Pebble delivers balanced illumination that enhances comfort and promotes confident movement across outdoor environments.

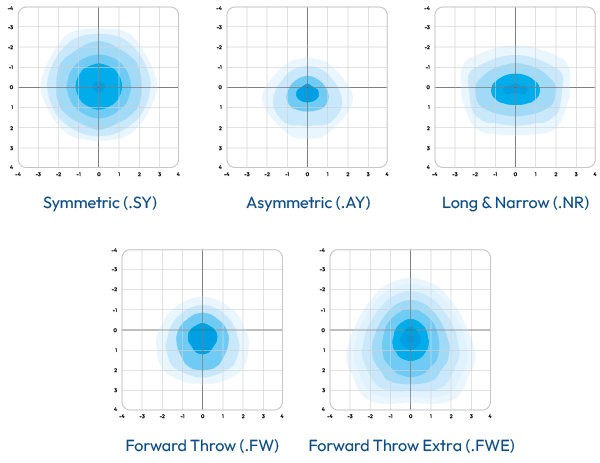

Distribution


Adapt light to every environment

Rotatable and interchangeable optical modules allow the distribution to be aligned and selected to suit each application. From pathways to open public spaces, Pebble delivers consistent, controlled illumination where it’s needed most.

Designed for visual comfort at eye level

Prismatic control diffuses LED points and manages luminance at typical viewing angles, reducing glare and creating a more balanced visual environment.

Protect the night sky

The recessed optical design prevents upward light spill, supporting Dark Sky-friendly schemes and reducing sky glow.

Smoother light, safer movement

A controlled transition between illuminated and surrounding areas reduces contrast, improving visibility and supporting safer navigation for pedestrians, cyclists and motorists.

Prismatic control, improved uniformity

The angled LED platform works in combination with the optical system to enhance distribution and improve uniformity, while reducing unnecessary spill light.

Built for long-term performance

The optic and LED board are combined into a single serviceable unit, accessed via one fixing point to simplify maintenance and support reduced lifecycle costs.

Control light at the boundary

Designed to accommodate retrofit backlight shields where required, helping manage spill light at site boundaries and support compliance with environmental and residential requirements.

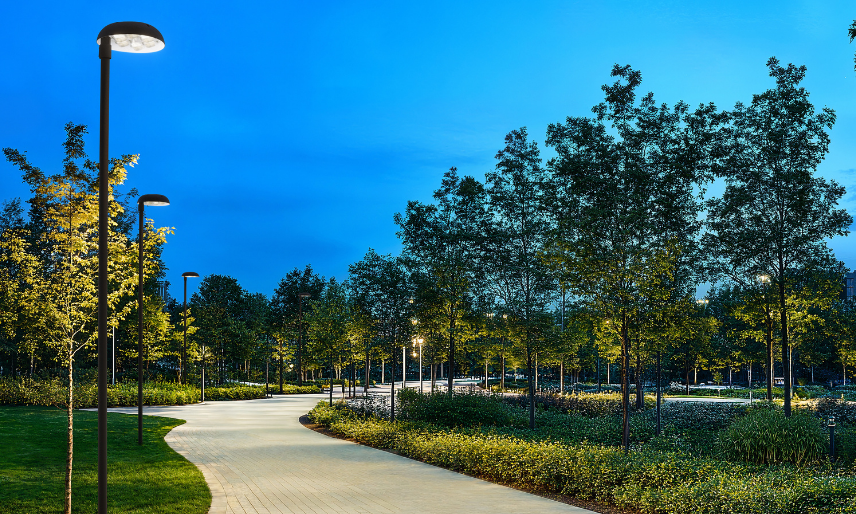

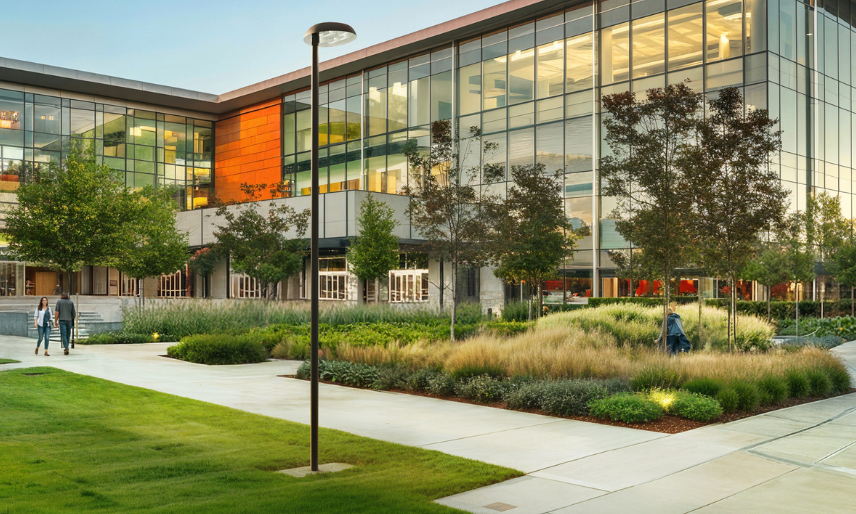

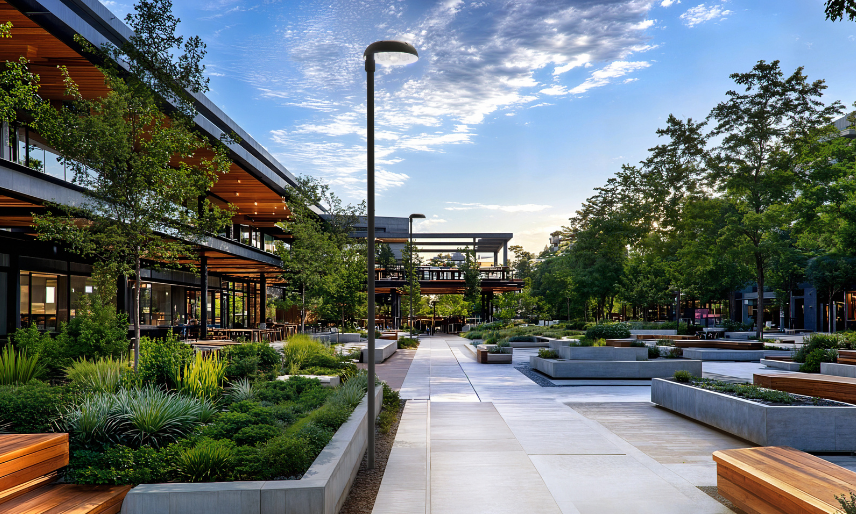

Applications

Distribution

Specification

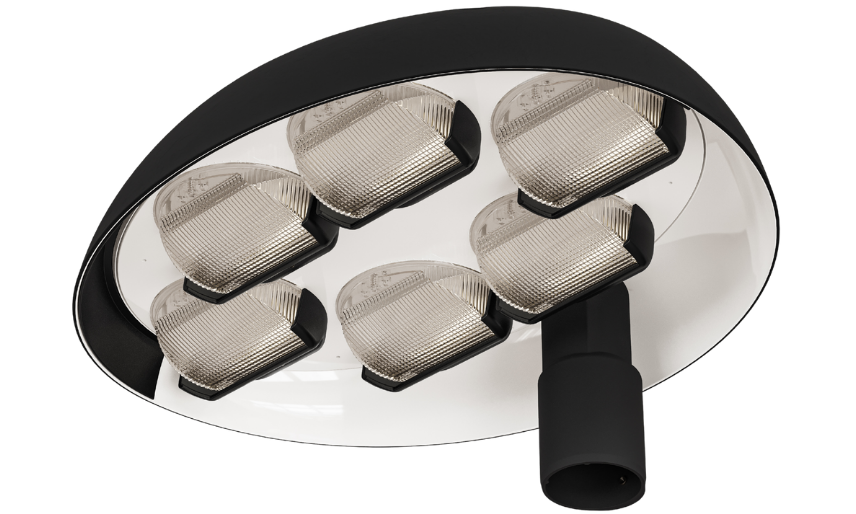

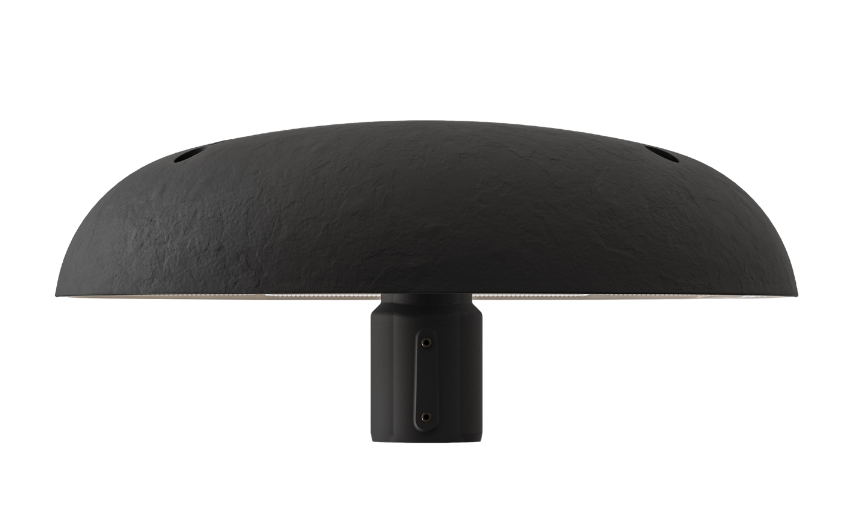

Holophane Pebble luminaire is an outdoor area light with a low-profile design and patented modular light engine concept. The product is manufactured from die-cast marine-grade aluminium and sealed to IP65, incorporating individual prismatic polycarbonate optic pods.

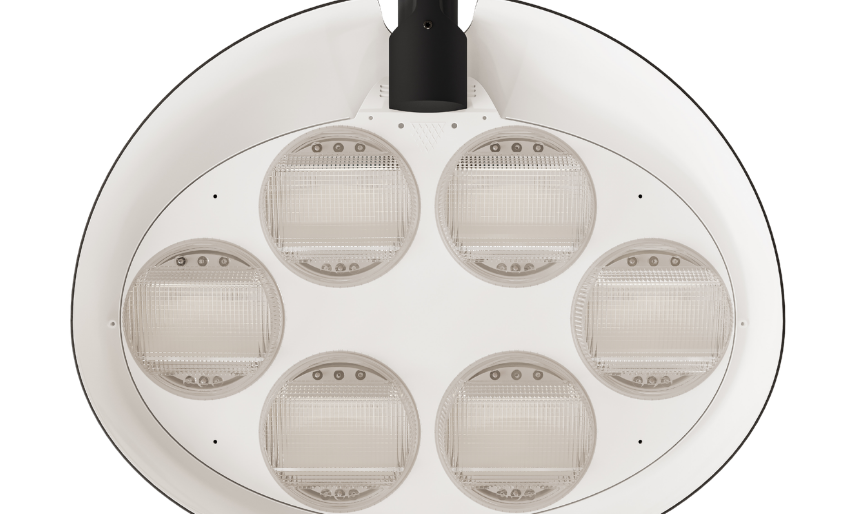

The optical pods deliver a ‘Comfort Optic’ solution, combining prismatic control with a softly illuminated surface to provide balanced light, reduced glare and improved visibility.

Access to the driver and electrical terminations is via a detachable housing on top of the luminaire.

 Copy specification to clipboard

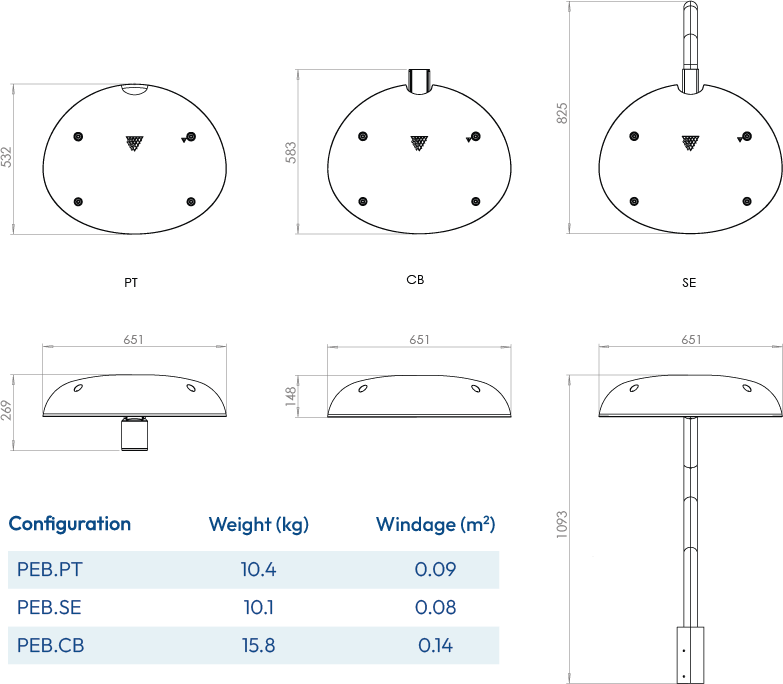

Dimensions
