Holophane - MENHIR

Photometry Filter

Lumen

Colour Temperature

Power

Distributions

1 Opening

2 Openings

Lumen (lm)	Colour Temperature (K)	Distribution
510	3,000	1 Opening
530	4,000	1 Opening
775	3,000	1 Opening
805	4,000	1 Opening
1,430	3,000	1 Opening
1,490	4,000	1 Opening
915	3,000	2 Openings
955	4,000	2 Openings
1,240	3,000	2 Openings
1,290	4,000	2 Openings
2,500	3,000	2 Openings
2,600	4,000	2 Openings

Download all Photometry and BIM Data

Gallery

Key Features

A very effective graphic gesture: a cylindrical base supports the diffuser that, when switched on, reproduces the circular shape of the body on the surface where it is installed. MENHIR is the version from the greater dimensions, more apt to public spaces, while MICRO MENHIR is perfect for private gardens and parks. It is available in three heights and with light distribution on 180° and 360°.

Applications

External

Residential

Public Spaces

Distribution

1 Opening

2 Openings

Specification

Extruded aluminium alloy body. Die-cast head made of aluminium alloy with very low copper content. A4 Stainless steel screws. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray.

Copy specification to clipboard

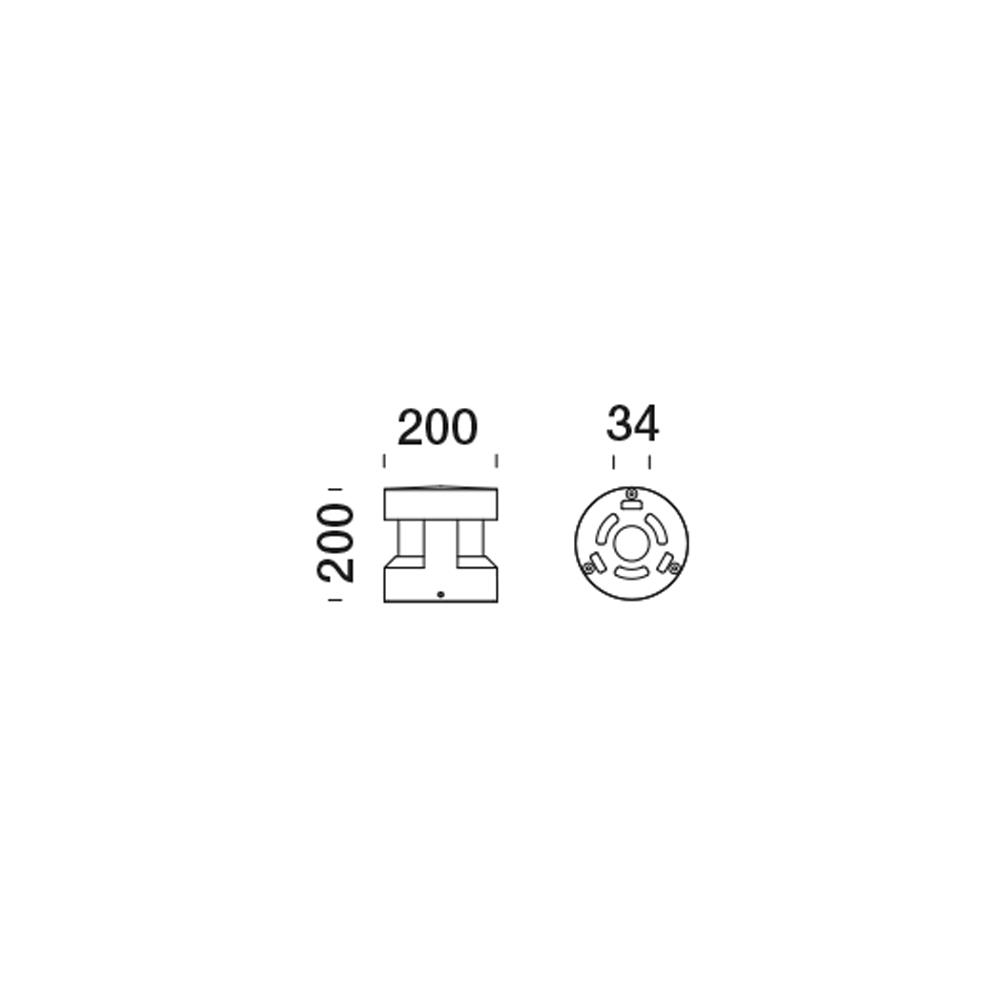

Dimensions

MENHIR

Product code: MENH

MENHIR and MICRO MENHIR belong to two families with the same elegant and clean impression from linear but evocative drawing.

Lumen	510 - 2,600
Power consumption	15.5 - 40
Distributions	2
IK Rating	IK08
IP Rating	IP65
Colour range	3,000 - 4,000

Gallery
Distribution
Key Features
Key Features
Applications
Dimensions

Photometry and BIM Data
